CemTie

Grouted remedial tie for stabilizing solid masonry

CemTie is a versatile, fully grouted, remedial helical tie used to stabilize all forms of solid masonry, secure failed lintels and brick rings, reconnecting separated internal and external building walls and repair parapets.

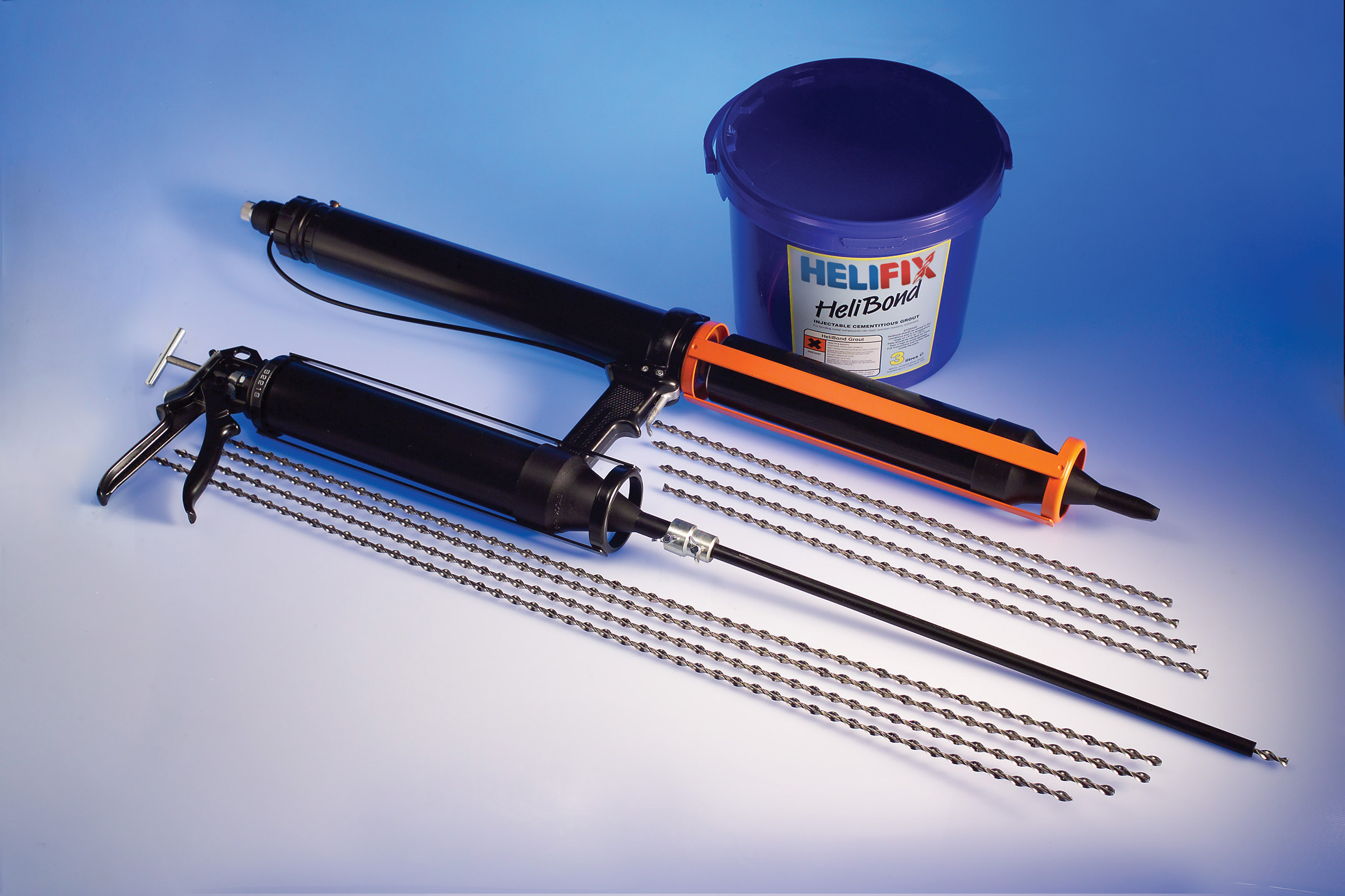

System Components

  • CemTies of different lengths
  • Manual applicator and two extension nozzles
  • Long series drill bits
  • Brush for cleaning hole
  • Helibond cementitious grout

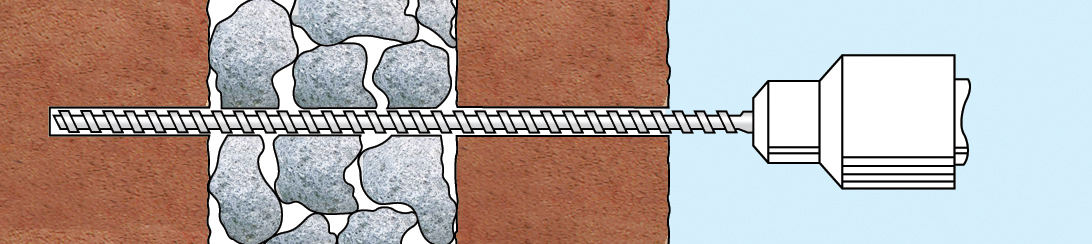

1. Drill Clearance hole to required diameter and depth and flush clean.

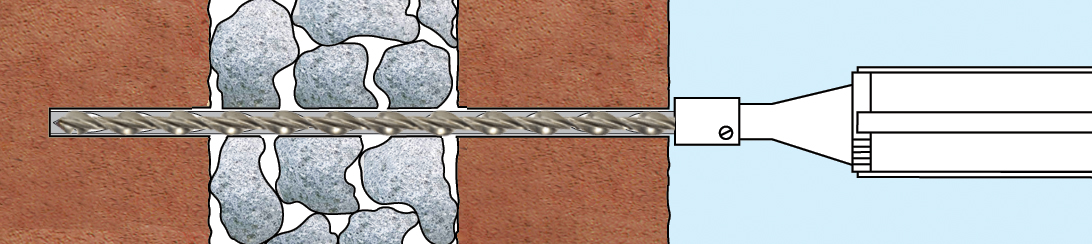

2. Push CemTie full into grout-filled pinning nozzle of grout gun and insert nozzle to the back of the hole.

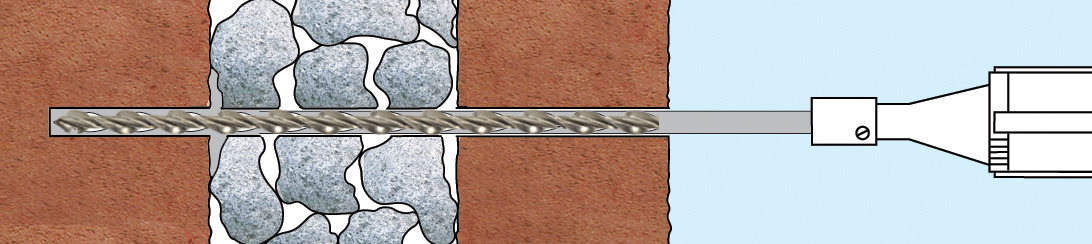

3. As grout is injected the CemTie is carried with it

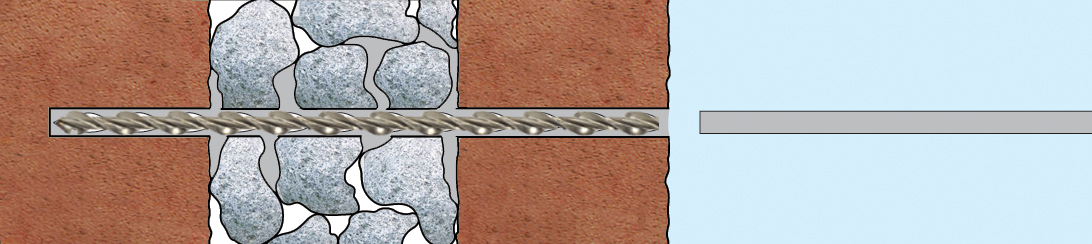

4. Back pressure pushes nozzle out of hole to leave fully grouted tie

  • Stabilizing solid or rubble filled walls
  • Reinstating failed lintels (when combined with Helibeam techniques)
  • Securing multi-layer brick rings in bridges, tunnels and arches
  • Reconnecting separated internal and external building walls
  • Securing delaminated masonry
  • Repairing and securing cornices and decorative fascias
  • Securing parapet walls and copings
  • Grade 304 or 316 stainless steel tie up to 1m long as standard
  • Flexible to allow normal structural movements
  • Quick, easy, non-disruptive installation
  • Tie and grout installed simultaneously
  • Ideal for overhead installations
  • Highly cost-effective masonry stabilization technique
  • Much quicker and simpler than alternative methods
  • Fully concealed for sympathetic repairs
  • CemTie plus HeliBond grout produces great tensile strength
