DryFix Terracotta Tie

For securing loose or fractured terracotta and delicate facings

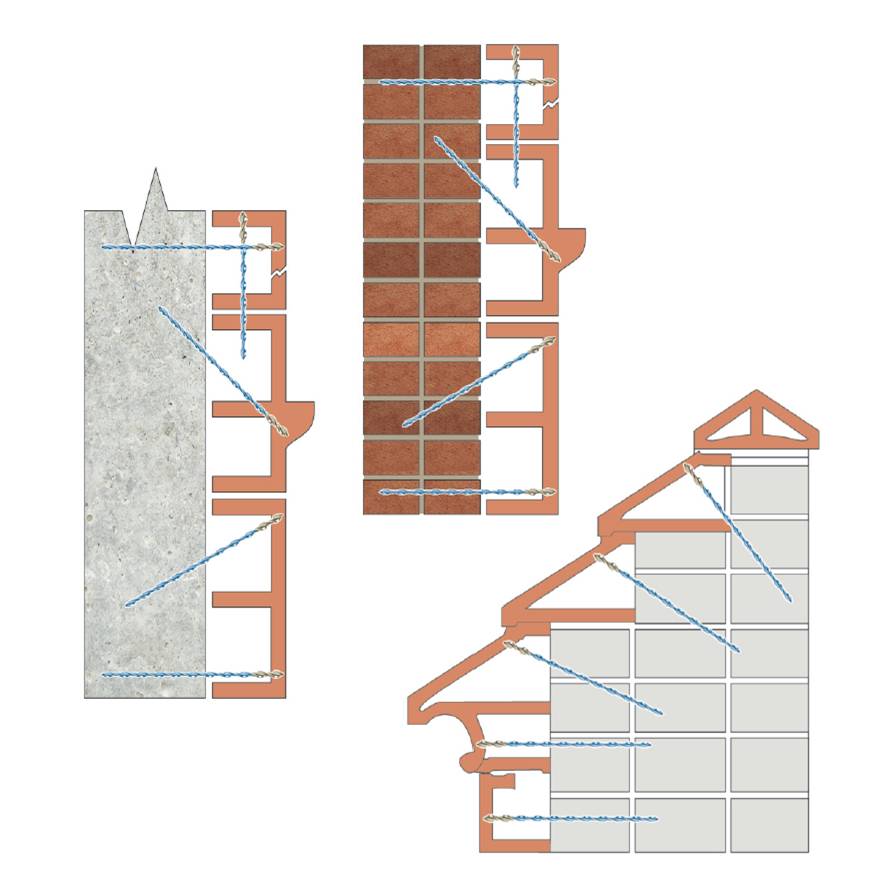

The  DryFix Terracotta Tie is a dry mechanical pinning and remedial tying system. It is used to secure fragile terracotta facings and delicate decorations and features which have become loose or are suffering from stress fractures.

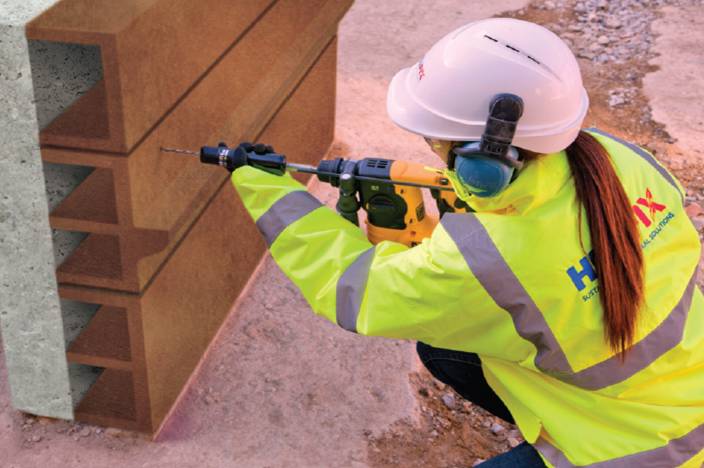

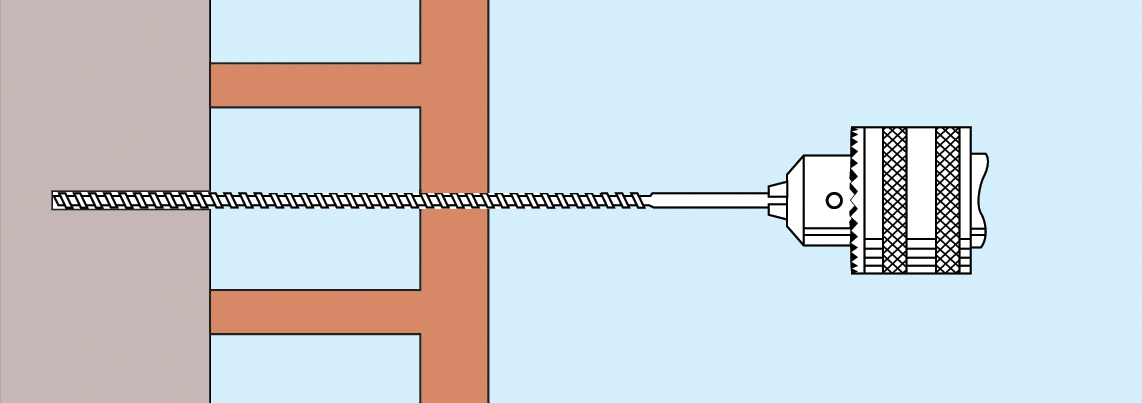

1. Drill a small pilot hole through the terracotta and into the backup material using a rotary percussion drill (3-jaw-chuck- type)

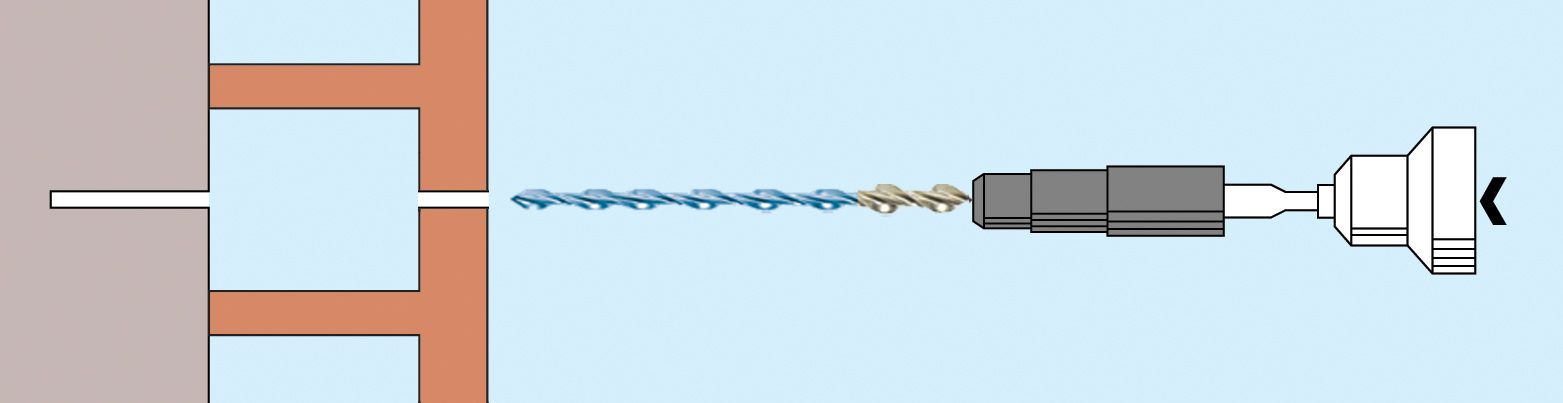

2. Load the tie into the insertion tool fitted to an electric hammer drill (SDStype)

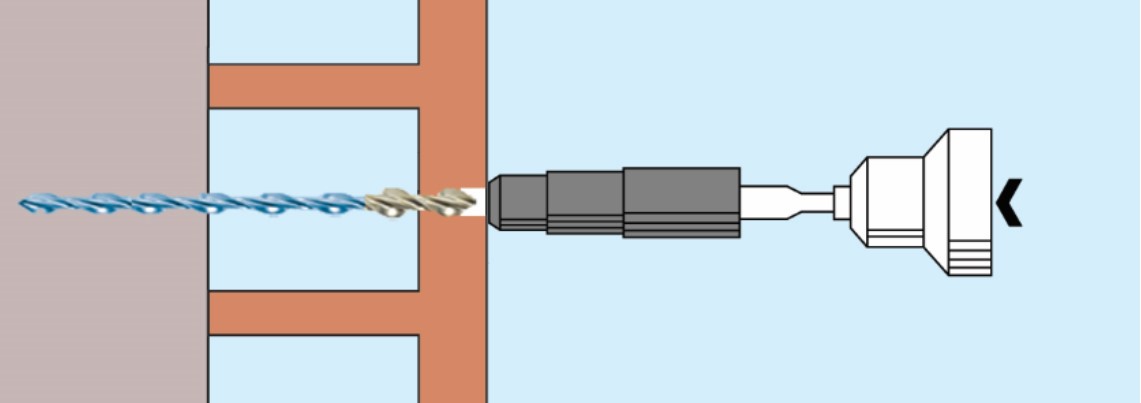

3. The tie is power driven into position (with SDS hammer drill) until the outer end of the tie is automatically recessed below the face of the terracotta. Make good the entry hole with matching materials. In thin walled terracotta, the tie may need to be left flush with the surface

  • Developed specifically to secure fragile terracotta facings and delicate decorations and features which have become loose or are suffering from stress fractures.
  • It has an 8mm diameter over the majority of its length with a short 10mm section at one end to grip the soft terracotta without enlarging the pilot hole.
  • It is installed in the same manner as standard DryFix ties to provide a rapid, reliable and concealed solution.

  • Does not stress or fracture fragile substrates
  • Requires no resin, grout or mechanical expansion
  • Requires only a small diameter pilot hole
  • Quick, easy, non-disruptive installation using the Power Drive Attachment
  • Installed tie is recessed below the face of the terracotta
  • Highly economical with low installed costs
  • Effective in all common building materials
  • Leaves masonry virtually unmarked
  • Usable in all weathers and temperatures
